Productdetails:
Betalen & Verzenden Algemene voorwaarden:
|
| Model: | EJA210E-JHS4J-912DN-EA14A1SE01-B/D4 | Gewicht: | 8.3kg |
|---|---|---|---|
| Het verschepen Gewicht: | 11kg | Metingsspanwijdte (capsule): | 1 aan 100kPa (4 tot 400 inH2O) |
| installatie: | Opgezette flens | fabrikant: | YOKOGAWA |
| Productnaam: | Flens Opgezette Differentiële Drukzender | HS Code: | 90261000 |
| Garantie: | 1 jaar |

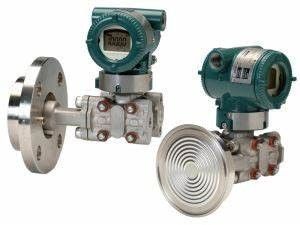

EJA210E-JHS4J Yokogawa Flange Mounted Differential Pressure Transmitter
Description:
Manufacturer : Yokogawa
Product No. : EJA210E-JHS4J-912DN-EA14A1SE01-B/D4
Product type : Flange Mounted Differential Pressure Transmitter
Output signal : J = 4 to 20 mA DC with digital communication (HART 5/HART 7 protocol)
Measurement span (capsule) : H = 5 to 500kPa (20 to 2000 inH2O)
Low pressure side Process connections : 4 = with 1/2 NPT female process connector
Coverflange bolts and nuts material : J = B7 carbon steel
Installation : 9 = Horizontal piping type and left side high pressure
Amplifier housing : 1 = Cast aluminum alloy
Electrical connection : 2 = 1/2 NPT female, two electrical connections without blind plugs
Flange rating : A1 = ANSI class 150
Gasket contact surface : 1 = Serration (for ANSI flange only)
Wetted parts material (high pressure side) : WE = Hastelloy C-276 diaphragm, 316 SST, 316 SST pipe.
Extension : 5 = Length (X2) = 150mm
Fill fluid : B = For general use (Silicone oil), –40 to 120°C process temperature, –40 to 85°C ambient temperature.
Shipping Weight : 18 Kg
Product advantages:
1.The high performance flange mounted differential pressure transmitter EJA210E can be used
to measure levels of densities of solidifying or precipitating liquids.
2.EJA210E outputs a 4 to 20 mADC signal corresponding to the measured differential
pressure. Its accurate and stable sensor can also measure the static pressure which can be shown on
the integral indicator or remotely monitored via BRAIN or HART communications.
3.All EJA-E series models in their standard configuration, with the exception of the Fieldbus, PROFIBUS and Low Power
types, are certified as complying with SIL 2 for safety requirement.
Product applications:
| EJA210E-JMS4J-912DN-EJ14A2SE01-B |
| EJA210E-JMS5J-912NN-WA13A1SW00-B/D4 |
| EJA210E-DMS4J-912DN-EJ14A2SE01-B/D4 |
| EJA210E-JHS4J-912DN-EA14A1SE01-B/D4 |
| EJA210E-JMS3J-919EN-WA12B2WW00-B/D4 |
| EJA210E-JHS4J-917DN-EA14B1SE03-B/D3 |
| EJA210E-DHS4J-912NN-EJ14A2SE01-B/D4 |
| EJA210E-JMS4J-912DN-WA12A2WW00-B/D4 |
| EJA210E-JMS5G-917EN-WD22C2WW00-B |
| EJA210E-JMS5G-919DN-WA12C1WW00-B/KU22/D4/X2/M0W/T52 |
| EJA210E-JHS4G-92DDN-WA23C1SW00-B/KS21/A/D4/M1W/T56 |
| EJA210E-JMS4G-92DDN-WA23C1SW00-B/KS21/A/D4/M1W/T56 |
| EJA210E-JMS4G-92DDN-WA23C2HW00-B/KS21/A/D4/M1W/T56 |
