Productdetails:
Betalen & Verzenden Algemene voorwaarden:
|
| Oorsprong: | Singapore | Model: | 3051CG2A22A1AM5B4 |
|---|---|---|---|
| Macht: | 4-20 mA: 10.5-55 V gelijkstroom zonder ladings Lage Macht: 6-12 V gelijkstroom zonder lading | Materialen: | Sensor Nat gemaakte Delen: EERSTE, Hastelloy, Monel, Tantalium, Goud Geplateerde SS, Goud Geplateerd |
| Steun: | Coplanaire en Traditionele flenzen en Adapters: Cadmium en Vernikkeld Cs, 316 EERSTE | Maatregelen absolute druk: | tot 4000 psia (275,8 bar). |
| Maatregelenverschil en panddruk: | tot 2000 psi (137,9 bar) | Output: | 4-20ma, met het digitale signaal van de HERTovereenkomst |
| Diafragmamateriaal: | 316L roestvrij staal | ||
| Hoog licht: | Maat Emerson Rosemount Pressure Transmitter,3051CG Emerson Rosemount Pressure Transmitter,10.5V |
||

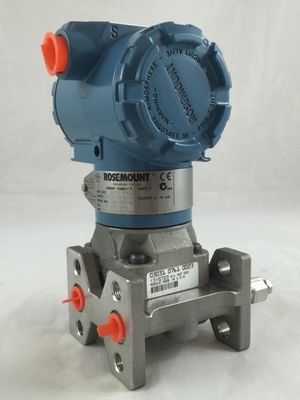

De Overdrukzender 3051CG2A22A1AM5B4 van Emerson Rosemount 3051CG
Fabrikant: Rosemount
Product Nr. : 3051CG2A22A1AM5B4
Producttype: 3051C coplanaire drukzender
Metingstype: G = Pand
Drukwaaier: 2 = – 250 tot 250 inH2O (– 621,60 tot 621,60 mbar)
Zenderoutput: A = 4-20 mA met digitaal die signaal op Protocol HART® wordt gebaseerd
Materialen van bouw: 2 = het Coplanaire type van Procesflens, EERSTE Flensmateriaal, EERSTE Afvoerkanaal/opening
Het isoleren van diafragma: 2 = 316L EERSTE
O-ring: A = glas-Gevulde PTFE
De sensor vult vloeistof: 1 = Silicone
Huisvestingsmateriaal: B = Aluminium, de grootte van de 1,5 Buisingang van M20 x
Het opzetten - steun: B4 = Coplanaire flenssteun, al EERSTE, 2 binnen. pijp en paneel
Vertoning en interfaceopties: M5 = LCD vertoning
Flensadapters: DF = ½ – 14 NPT flensadapter
Gewicht: 3 kg
Het verschepen gewicht: 4 kg
· Veiligheid aan CEI 61508 wordt verklaard die
· Statische drukoptie tot 6.092 psi (420 bar)
· Procesdruk en van de Sensortemperatuur Alarm
· Van de gebruikers configureerbare alarm en verzadiging waarden
· Regelbare afgesneden zwakstroom
3051CD differentiële drukzender
3051CG de zender van de panddruk
3051CA absolute drukzender
| Drukwaaier | ||||||
| Roemount 3051CD | Rosemount 3051CG | Rosemount 3051CA | ||||
| 0 | -3-3inH2O/0.1inH2O | Niet heden | Niet heden | |||
| 1 | -25-25inH2O/0.5inH2O | -25-25inH2O/0.5inH2O | 0-30psia/0.3psia | |||
| 2 | -250-250inH2O/2.5inH2O | -250-250inH2O/2.5inH2O | 0-150psia/1.5psia | |||
| 3 | -1000-1000inH2O/10inH2O | -407-1000inH2O/10inH2O | 0-800psia/8psia | |||
| 4 | -300-300psi/3psi | -14.7-300psi/3psi | 0-4000psia/40psia | |||
| 5 | 2000-2000psi/20psi | -14.7-2000psi/20psi | Niet heden | |||
| Output | ||||||
| A | 4-20ma, met het digitale signaal van de HERTovereenkomst | |||||
| M | 1-5Vdc, met het digitale signaal van de HERTovereenkomst | |||||
| F | FF-fieldbus | |||||
| W | profibus | |||||
| Het materiaal van structuurdelen | ||||||
| Het type van procesflens | Flensmateriaal | Vloeistof/gasuitlaatklep | Het materiaal van de flensverbinding | |||
| 5 | coplane | Galvaniseer koolstofstaal | Roestvrij staal | Galvaniseer koolstofstaal | ||
| 2 | Coplane | Roestvrij staal | Roestvrij staal | Roestvrij staal | ||
| 3 | coplane | Hastelloy C | Hastelloy C | Hastelloy C | ||
| 4 | Coplane | Monel | Monel | Monel | ||
| 8 | coplane | Galvaniseer koolstofstaal | Hastelloy C | Galvaniseer koolstofstaal | ||
| 7 | coplane | Roestvrij staal | Hastelloy C | Roestvrij staal | ||
| 0 | Vervang flens | |||||
| Diafragmamateriaal | ||||||
| 2 | 316L roestvrij staal | |||||
| 3 | Hastelloy C | |||||
| 4 | Monel | |||||
| 5 | Tantalium | |||||
| 6 | Geplateerd goud monel | |||||
| 7 | Goud geplateerd roestvrij staal | |||||
| 3051CG1A02A1AB1H2L4M5, | 3051CD0A02A1AB3H2L4M5E5, |
| 3051CG2A02A1AB1H2L4M5, | 3051CD1A02A1AB3H2L4M5E5, |
| 3051CG3A02A1AB1H2L4M5, | 3051CD2A02A1AB3H2L4M5E5, |
| 3051CG4A02A1AB1H2L4M5, | 3051CD3A02A1AB3H2L4M5E5, |
| 3051CG5A02A1AB1H2L4M5, | 3051CD4A02A1AB3H2L4M5E5, |
| 051CG1A02A1AB3H2L4M5, | 3051CD5A02A1AB3H2L4M5E5, |
| 3051CG2A02A1AB3H2L4M5, | 3051CD0A02A1AB3H2L4M5I5, |
| 3051CG3A02A1AB3H2L4M5, | 3051CD1A02A1AB3H2L4M5I5, |
| 3051CG4A02A1AB3H2L4M5, | 3051CD2A02A1AB3H2L4M5I5, |
| 3051CG5A02A1AB3H2L4M5, | 3051CD3A02A1AB3H2L4M5I5, |
| 3051CG1A02A1AB1H2L4M5K5, | 3051CD4A02A1AB3H2L4M5I5, |
| 3051CG2A02A1AB1H2L4M5K5, | 3051CD5A02A1AB3H2L4M5I5, |
| 3051CG3A02A1AB1H2L4M5K5 | 3051CD1A22A1AB4M5, |
| 3051CG4A02A1AB1H2L4M5K5, | 3051CD2A22A1AB4M5, |
| 3051CG5A02A1AB1H2L4M5K5 | 3051CD3A22A1AB4M5, |
| 3051CG1A02A1AB1H2L4M5E5, | 3051CD4A22A1AB4M5, |
| 3051CG2A02A1AB1H2L4M5E5, | 3051CD5A22A1AB4M5, |
| 3051CG3A02A1AB1H2L4M5E5, | 3051CD1A22A1AB4M5DF, |
| 3051CG4A02A1AB1H2L4M5E5, | 3051CD2A22A1AB4M5DF, |
| 3051CG5A02A1AB1H2L4M5E5, | 3051CD3A22A1AB4M5DF, |
| 3051CG1A02A1AB1H2L4M5I5, | 3051CD4A22A1AB4M5DF, |
| 3051CG2A02A1AB1H2L4M5I5, | 3051CD5A22A1AB4M5DF, |
| 3051CG3A02A1AB1H2L4M5I5, | 3051CD1A22A1AB4M5K5, |
| 3051CG4A02A1AB1H2L4M5I5, | 3051CD2A22A1AB4M5K5, |
| 3051CG5A02A1AB1H2L4M5I5, | 3051CD3A22A1AB4M5K5, |
| 3051CG1A02A1AB3H2L4M5K5, | 3051CD4A22A1AB4M5K5, |
| 3051CG2A02A1AB3H2L4M5K5, | 3051CD5A22A1AB4M5K5, |
| 3051CG3A02A1AB3H2L4M5K5, | 3051CD1A22A1AB4M5E5, |
| 3051CG4A02A1AB3H2L4M5K5, | 3051CD2A22A1AB4M5E5, |
| 3051CG5A02A1AB3H2L4M5K5, | 3051CD3A22A1AB4M5E5, |
| 3051CG1A02A1AB3H2L4M5E5, | 3051CD4A22A1AB4M5E5, |
| 3051CG2A02A1AB3H2L4M5E5, | 3051CD5A22A1AB4M5E5, |
| 3051CG3A02A1AB3H2L4M5E5, | 3051CD1A22A1AB4M5I5, |
| 3051CG4A02A1AB3H2L4M5E5, | 3051CD2A22A1AB4M5I5, |
| 3051CG5A02A1AB3H2L4M5E5, | 3051CD3A22A1AB4M5I5, |
| 3051CG1A02A1AB3H2L4M5I5, | 3051CD4A22A1AB4M5I5, |
| 3051CG2A02A1AB3H2L4M5I5, | 3051CD5A22A1AB4M5I5, |
| 3051CG3A02A1AB3H2L4M5I5, | 3051CA1A02A1AB1H2L4M5, |
| 3051CG4A02A1AB3H2L4M5I5, | 3051CA2A02A1AB1H2L4M5, |
| 3051CG5A02A1AB3H2L4M5I5, | 3051CA3A02A1AB1H2L4M5, |
| 3051CG1A22A1AB4M5, | 3051CA4A02A1AB1H2L4M5, |
| 3051CG2A22A1AB4M5, | 3051CA5A02A1AB1H2L4M5, |
| 3051CG3A22A1AB4M5, | 3051CA1A02A1AB3H2L4M5, |
| 3051CG4A22A1AB4M5, | 3051CA2A02A1AB3H2L4M5, |
| 3051CG5A22A1AB4M5, | 3051CA3A02A1AB3H2L4M5, |
| 3051CG1A22A1AB4M5DF, | 3051CA4A02A1AB3H2L4M5, |
| 3051CG2A22A1AB4M5DF, | 3051CA5A02A1AB3H2L4M5, |
| 3051CG3A22A1AB4M5DF, | 3051CA1A02A1AB1H2L4M5K5, |
| 3051CG4A22A1AB4M5DF, | 3051CA2A02A1AB1H2L4M5K5, |
| 3051CG5A22A1AB4M5DF | 3051CA3A02A1AB1H2L4M5K5, |
| 3051CG1A22A1AB4M5K5, | 3051CA4A02A1AB1H2L4M5K5, |
| 3051CG2A22A1AB4M5K5, | 3051CA5A02A1AB1H2L4M5K5, |
| 3051CG3A22A1AB4M5K5 | 3051CA1A02A1AB1H2L4M5E5, |
| 3051CG4A22A1AB4M5K5, | 3051CA2A02A1AB1H2L4M5E5, |
| 3051CG5A22A1AB4M5K5, | 3051CA3A02A1AB1H2L4M5E5, |
| 3051CG1A22A1AB4M5E5 | 3051CA4A02A1AB1H2L4M5E5, |
| 3051CG2A22A1AB4M5E5, | 3051CA5A02A1AB1H2L4M5E5, |
| 3051CG3A22A1AB4M5E5, | 3051CA1A02A1AB1H2L4M5I5, |
| 3051CG4A22A1AB4M5E5 | 3051CA2A02A1AB1H2L4M5I5, |
| 3051CG5A22A1AB4M5E5, | 3051CA3A02A1AB1H2L4M5I5, |
| 3051CG1A22A1AB4M5I5, | 3051CA4A02A1AB1H2L4M5I5, |
| 3051CG2A22A1AB4M5I5 | 3051CA5A02A1AB1H2L4M5I5, |
| 3051CG3A22A1AB4M5I5, | 3051CA1A02A1AB3H2L4M5K5, |
| 3051CG4A22A1AB4M5I5, | 3051CA2A02A1AB3H2L4M5K5, |
| 3051CG5A22A1AB4M5I5 | 3051CA3A02A1AB3H2L4M5K5, |
| 3051CD0A02A1AB1H2L4M5, | 3051CA4A02A1AB3H2L4M5K5, |
| 3051CD1A02A1AB1H2L4M5, | 3051CA5A02A1AB3H2L4M5K5, |
| 3051CD2A02A1AB1H2L4M5 | 3051CA1A02A1AB3H2L4M5E5, |
| 3051CD3A02A1AB1H2L4M5, | 3051CA2A02A1AB3H2L4M5E5, |
| 3051CD4A02A1AB1H2L4M5, | 3051CA3A02A1AB3H2L4M5E5, |
| 3051CD5A02A1AB1H2L4M5 | 3051CA4A02A1AB3H2L4M5E5, |
| 3051CD0A02A1AB3H2L4M5, | 3051CA5A02A1AB3H2L4M5E5, |
| 3051CD1A02A1AB3H2L4M5, | 3051CA1A02A1AB3H2L4M5I5, |
| 3051CD2A02A1AB3H2L4M5 | 3051CA2A02A1AB3H2L4M5I5, |
| 3051CD3A02A1AB3H2L4M5, | 3051CA3A02A1AB3H2L4M5I5, |
| 3051CD4A02A1AB3H2L4M5, | 3051CA4A02A1AB3H2L4M5I5, |
| 3051CD5A02A1AB3H2L4M5 | 3051CA5A02A1AB3H2L4M5I5, |
| 3051CD0A02A1AB1H2L4M5K5, | 3051CA1A22A1AB4M5, |
| 3051CD1A02A1AB1H2L4M5K5, | 3051CA2A22A1AB4M5, |
| 3051CD2A02A1AB1H2L4M5K5, | 3051CA3A22A1AB4M5, |
| 3051CD3A02A1AB1H2L4M5K5, | 3051CA4A22A1AB4M5, |
| 3051CD4A02A1AB1H2L4M5K5, | 3051CA5A22A1AB4M5, |
| 3051CD5A02A1AB1H2L4M5K5, | 3051CA1A22A1AB4M5DF, |
| 3051CD0A02A1AB1H2L4M5E5, | 3051CA2A22A1AB4M5DF, |
| 3051CD1A02A1AB1H2L4M5E5, | 3051CA3A22A1AB4M5DF, |
| 3051CD2A02A1AB1H2L4M5E5, | 3051CA4A22A1AB4M5DF, |
| 3051CD3A02A1AB1H2L4M5E5, | 3051CA5A22A1AB4M5DF, |
| 3051CD4A02A1AB1H2L4M5E5, | 3051CA1A22A1AB4M5K5, |
| 3051CD5A02A1AB1H2L4M5E5, | 3051CA2A22A1AB4M5K5, |
| 3051CD0A02A1AB1H2L4M5I5, | 3051CA3A22A1AB4M5K5, |
| 3051CD1A02A1AB1H2L4M5I5, | 3051CA4A22A1AB4M5K5, |
| 3051CD2A02A1AB1H2L4M5I5, | 3051CA5A22A1AB4M5K5, |
| 3051CD3A02A1AB1H2L4M5I5, | 3051CA1A22A1AB4M5E5, |
| 3051CD4A02A1AB1H2L4M5I5, | 3051CA2A22A1AB4M5E5, |
| 3051CD5A02A1AB1H2L4M5I5, | 3051CA3A22A1AB4M5E5, |
| 3051CD0A02A1AB3H2L4M5K5, | 3051CA4A22A1AB4M5E5, |
| 3051CD1A02A1AB3H2L4M5K5, | 3051CA5A22A1AB4M5E5, |
| 3051CD2A02A1AB3H2L4M5K5, | 3051CA1A22A1AB4M5I5, |
| 3051CD3A02A1AB3H2L4M5K5, | 3051CA2A22A1AB4M5I5, |
| 3051CD4A02A1AB3H2L4M5K5, | 3051CA3A22A1AB4M5I5, |
| 3051CD5A02A1AB3H2L4M5K5, | 3051CA4A22A1AB4M5I5, |
