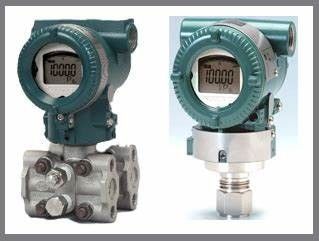

EJA430E-DBS4G-717DD/D3 Yokogawa EJA430E Gauge Pressure Transmitter with Hart Proto

EJA430E-DBS4G-717DD/D3 Yokogawa EJA430E Gauge Pressure Transmitter with Hart Proto
EJA430E-DBS4G-717DD/D3 Yokogawa EJA430E Gauge Pressure Transmitter with Hart Proto

Grote Afbeelding :  EJA430E-DBS4G-717DD/D3 Yokogawa EJA430E Gauge Pressure Transmitter with Hart Proto

Productdetails:
Plaats van herkomst: Japan
Merknaam: YOKOGAWA
Certificering: ROHS
Modelnummer: EJA430E-DBS4G-717DD/D3
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1
Prijs: Negotiable
Verpakking Details: Karton
Levertijd: op verzoek
Betalingscondities: T/T
Levering vermogen: 1~1000PCS
Gedetailleerde productomschrijving
Het verschepen Gewicht: 3KG Reactietijd: 90ms
fabrikant: YOKOGAWA Model: EJA430E-DBS4G-717DD/D3
STABILITEIT: ±0.1% van URL per 7 jaar Nauwkeurigheid: ±0.055% van Spanwijdte
Oorsprong: Japan HS Code: 90261000

EJA430E-DBS4G-717DD/D3 Yokogawa EJA430E Gauge Pressure Transmitter with Hart Proto





Description:



Manufacturer : Yokogawa

Product No. : EJA430E-DBS4G-717DD/D3

Product Type : Gauge Pressure Transmitter

Output signal : D = 4 to 20 mA DC with digital communication (BRAIN protocol)

Measurement span (capsule) : B = 0.14 to 16 MPa (20 to 2300 psi)

Wetted parts material : S

Cover flange and process connector : ASTM CF-8M

Capsule : Hastelloy C-276 (Diaphragm) F316L SST, 316L SST (Others)

Capsule gasket : Teflon-coated 316L SST

Vent/Drain plug : 316 SST

Process connections : 4 = with 1/2 NPT female process connector

Bolts and nuts material : G = 316L SST

Installation : 7 = Vertical piping, left side high pressure, and process connection down side

Amplifier housing : 1 = Cast aluminum alloy

Electrical connection : 7 = 1/2 NPT female, two electrical connections and a blind plug

Integral indicator : D = Digital indicator

Mounting bracket : D = 304 SST or SCS13A 2-inch pipe mounting, L type (for vertical piping)

Calibration units : D3 = Bar calibration (bar unit)

Weight : 2.8 Kg

Shipping Weight : 8 Kg









EJA430E features include:
  •  0.055% Accuracy (0.04% Accuracy optional)
  •  0.1% Stability per 10 years
  • 90 ms Response Time
  • Exida and TUV SIL 2/3 Certified
  • Local Parameter Setting (LPS)




  Hot sale Original Japanese Yokogawa 4-20ma Pressure Transducer EJA110E
L Capsule M Capsule H Capsule V Capsule
Range -10 to 10 kPa -100 to 100 kPa -500 to 500 kPa -0.5 to 14 MPa
(-40 to 40 inH2O) (-400 to 400 inH2O) (-2000 to 2000 inH2O) (-70 to 2000 psi)
Span 0.5 to 10 kPa 1 to 100 kPa 5 to 500 kPa 0.14 to 14 MPa
(2 to 40 inH2O) (4 to 400 inH2O) (20 to 2000 inH2O) (20 to 2000 psi)
Accuracy ±0.075% ±0.065% ± 0.065% ±0.065%
Degrees of Protection IP67, NEMA 4X, and JIS C0920 immersion proof
Certificates FM, CENELEC ATEX, CSA, IECEx
Output 4 to 20 mA DC, FOUNDATIONTM fieldbus or PROFIBUS PA 2-wire system with digital communication
Supply Voltage BRAIN and HART:10.5 to 42 V DC (10.5 to 30 V DC for Intrinsically safe type)
Fieldbus:9 to 32 V DC (9 to 24 V DC for Entity model and 9 to 17.5 V DC for FISCO model)
Ambient temperature -40 to 85 deg C (-40 to 185 deg F) (general use type)
-30 to 80 deg C (-22 to 176 deg F) (with integral indicator)
Process Temperature -40 to 120 deg C (-40 to 248 deg F) (general use type)
Maximum Working Pressure 16MPa(2300psi)
3.5MPa(500psi) for L capsule with special materials
Mounting 2-inch pipe mounting
Wetted parts material Capsule SUS316L(Diaphragm material is Hastelloy C-276),
Hastelloy C-276, Tantalum, Monel
Cover flange SUS316, Hastelloy C-276, Monel
Housing Cast aluminum alloy or SUS316 equivalent stainless steel (optional)











Common Models:



EJA430E-DAS4G-717DD
EJA430E-DAS4J-717DD
EJA430E-JAS5G-93DEB
EJA430E-JBS4C-93DEB
EJA430E-FAS5G-919DB
EJA430E-DBS4J-917DB/KF22
EJA430E-DAS4J-710DD/D3/C1
EJA430E-JAS4G-917DB/X2/A/D3/M11
EJA430E-JAS4G-722ND/KU22/A/D4
EJA430E-JAS4G-93CED/KU22/HAC/A
EJA430E-JBS5G-93CED/KU22/HAC/A
EJA430E-JBS4G-93CED/KU22/HAC/A
EJA430E-JBS5C-91DDB/KU22/X2/T12
EJA430E-JAS5J-919DN/KS21/D3/M01/T01/X2
EJA430E-JAS5G-919DB/KU22/X2/D3/M01/T01
EJA430E-JBS5G-919DB/KU22/X2/D3/M01/T12
EJA430E-JAS5G-92DDJ/KS21/A/D3/M01/T01
EJA430E-FHS4G-919DD/KS26/D3/X2/M11/T11
EJA430E-FHS4G-919DB/KS26/D3/X2/M11/T11
EJA430E-JHS4G-919DD/KU22/D3/X2/M11/T11
EJA430E-JHS4G-919EB/KU22/D3/X2/M11/T11
EJA430E-JBS5G-919DB/KU22/D3/X2/M01/T12
EJA430E-JBS5G-919DB/KU22/X2/D3/M01/T12
EJA430E-JAS5J-719DD/X2/D3/M01/T01/KU22
EJA430E-JBS5J-719DD/X2/D3/M01/T12/KU22
EJA430E-FAS5G-919DJ/KS26/M01/T01/D3
EJA430E-FAS5G-719DD/KS26/M01/T01/D3
EJA430E-FAS5G-319DD/KS26/M01/T01/D3









Delivery details



SHIPPING:

•We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong. if you have any special needs,please notify me.

•It will take 3 to 7days to reach in your hands.China Post delivery schedule will be in 20-45 days. If you can't wait, please choose other express.
