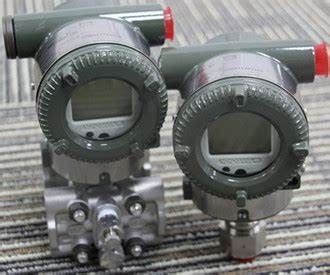

EJA510E-JAS4N-017DL/D3 EJA510E In-Line Mount Absolute Pressure Transmitter

EJA510E-JAS4N-017DL/D3 EJA510E In-Line Mount Absolute Pressure Transmitter

Description:

Manufacturer : Yokogawa
Product No. : EJA510E-JAS4N-017DL/D3
Product type : EJA510E Absolute Pressure Transmitter
Output signal : J = 4 to 20 mA DC Output with digital communication
Measurement span (capsule) : A = 0.1 to 2 MPa (14.5 to 290 psi)
Wetted parts material : S = Process connector 316L SST # , Diaphragm Hastelloy C-276 *3#, Others 316L SST #
Process connections : 4 = 1/2 NPT female
N = Always N
0 = Always 0
Amplifier housing : 1 = Cast aluminum alloy
Electrical connection : 7 = 1/2 NPT female, two electrical connections with a blind plug*7
Mounting bracket : L = 316 SST 2-inch pipe mounting
Shipping weight : 4Kg

The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-E series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.The EJA510E is our in-line mount absolute pressure transmitter in the series.

EJA510E features include:

• ± 0.055% Accuracy (0.04% Accuracy optional)
• ± 0.2% Stability per 10 years
• 90 ms Response Time
• Exida and TUV SIL 2/3 Certified
• 8,700 psia Maximum Over Pressure
• Local Parameter Setting (LPS)

Avaialble with HART 5/7, 1 to 5 VDC HART 7 (Low Power), FOUNDATION Fieldbus, PROFIBUS PA, or BRAIN communication.
