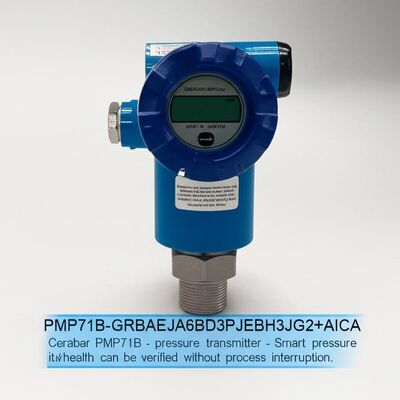

Cerabar PMP71B Smart Pressure Transmitter with Heartbeat Technology 700 bar Range and 0.025% Accuracy

MOQ:	1
Prijs:	Onderhandelbaar
Standaardverpakking:	Karton
Leveringstermijn:	Bespreekbaar
Betaalmethode:	T/T
Toeleveringskapaciteit:	500+pcs+on voorraad

Detailsinformatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst

Duitsland

Merknaam

Certificering

Modelnummer

PMP71B-GRBAEJA6BD3PJEBH3JG2+AICA

Meetbereik - Druk:

-10.... 1000 bar

Oorsprong:

Duitsland

Doorlooptijd:

10-12 weken

Garantie:

1 jaar

Goederen:

Gloednieuw en origineel

Kleur:

Blauw

naam:

PMP71B

Opvolger:

PMP71B-GRBAEJA6BD3PJEBH3JG2+AICA

Markeren:

Heartbeat Technology Pressure Transmitter

700 bar Pressure Range Smart Pressure Transmitter

0.025% Accuracy Cerabar PMP71B

Productbeschrijving

PMP71B-GRBAEJA6BD3PJEBH3JG2+AICA Cerabar PMP71B Pressure Transmitter

Smart pressure transmitter with health verification capability without process interruption

Configuration Details

Approval	GR - Non-hazardous area + EAC marking
Output	BA - 2-wire 4-20mA HART
Display & Operation	E - Graphic display with touch control
Housing Material	J - Dual compartment; Aluminum, coated
Electrical Connection	A - Gland M20, plastic, IP66/68 NEMA Type 4X/6P
Pressure Type	6 - Gauge
Application	B - Diaphragm seal
Diaphragm Seal Type	D - Compact
Sensor Range	3P - 10bar/1MPa/150psi
Calibration & Unit	J - Customized linear; see additional specifications
Process Connection, Sealing Surface	EB - Flange EN1092-1, B1
Process Connection	H3J - DN50 PN10-40, 316L
Membrane Material & Application	G - 316L, TempC; diaphragm seal
Fill Fluid	2 - Silicone oil, diaphragm seal
Operation Language Display	AI - Russian
Membrane Coating	CA - PTFE

Technical Specifications

Low range value	0 MPa
Upper range value	1 MPa
Damping	1 second
Scaled Variable - Low range value	0%
Scaled Variable - Upper range value	100%
Value 1 display	Pressure
Value 2 display	None
Net weight	3.326 Kilogram
SPK	PAE
HS-Code	90262020
Country of origin	Germany (DE)
Country of dispatch	Germany (DE)

Key Specifications

Accuracy

Standard: up to 0.05%

Platinum: up to 0.025%

Process Temperature

Standard: -40°C…+125°C (-40°F…+257°F)

Diaphragm seal: -40°C...+400°C (-40°F...+752°F)

Pressure Measuring Range

400 mbar...700 bar (1.5 psi...10,500 psi)

Main Wetted Parts

316L, AlloyC, Tantal, Monel, PTFE, Gold

Material Process Membrane

316L, AlloyC, Tantal, Monel, PTFE, Gold

Measuring Cell

400 mbar...700 bar (6 psi...10,500 psi)

Field of Application

This transmitter belongs to the new Cerabar generation, designed for robust performance with remote control capability via secure Bluetooth connection to mobile devices. The intuitive software features guided wizards for setup, proof tests, and device verification. Heartbeat Technology provides continuous monitoring and verification functions to detect anomalies in loop characteristics.

Performance Highlights

Pressure measuring range: up to 700 bar (10,500 psi)
Process temperatures up to 400°C (752°F) with diaphragm seal
Accuracy: up to ±0.025%

Key Benefits

Heartbeat Technology enables device health verification during process operation
Simple device status indication - display changes from green to red for diagnostic messages
Reduces systematic failures with error-free SIL commissioning and guided proof testing
Wireless control capability
